Power supply adapter 可換PIN_24W_45W
GFP241DA GFP451DA
Design AC Power supply, charger, DC power supply and switching power supply, complete procedure and quality assurance system from customer requirment,design, development,mass production and customer service.
Contact
Products Details
24W (24A Series) 产品描述Product Description
Model No.
    型号 		Typical output
    典型的输出
    		Output V
    输出电压 		Output A
    输出电流
GME24A-yyywwwFzR
    GME24A-yyywwwFXR
    GME24A-yyywwwFDS2 		5V,4A
    9V,2.5A
    12V,2A                                         15V,1.5A                                       24V,1A 		5-5.9V
    6-6.9V
    7-8.9V
    9.1-11.9V
    12-15V
    15.1-18V
    18.1-24.0V 		0.01-4A
    0.01-3.5A
    0.01-3.21A
    0.01-2.66A
    0.01-2.64A
    0.01-2A
    0.01-1.59A
    0.01-1.33A
GME24A-yyywwwFzR,FXR,FDS2     (yyy, www and z 是变量)
    yyy=050-059或060-069或070-089或091-119或120-150或151-180或181-240，
        表示额定输出电压5.0VDC ~ 5.9VDC 或 6.0VDC ~ 6.9VDC 或7.0VDC ~ 8.9VDC 或
        9.1VDC   ~ 11.9VDC 或12.0VDC ~   15.0VDC 或15.1VDC ~   18.0VDC 或18.1VDC ~   24.0VDC;
    www=001-400，表示额定输出电流从0.01A到4.0A;
    z=U,G,B,K,C,J,A,Q,R, z,E, N或W，代表不同国家的插头;
        U表示美国插头，g表示欧洲插头，B表示英国插头，K表示韩国插头，C表示中国插头，
        J表示日本插头，A表示澳大利亚插头，Q表示印度插头，R表示阿根廷插头，z表示巴西插头，
        E表示俄罗斯插头，N表示南非插头，W表示台湾插头。
    XR= 表示各种可互换插头类型
    DS2= 表示台式型外壳

GME24A-yyywwwFzR,FXR,FDS2    ( yyy, www and z are variables )
    aaa= 050-059 or 060-069 or 070-098 or 091-119 or 120-150 or 151-180 or   181-240,  represent for the rated   output voltage from 5.0VDC to 5.9VDC    or  6.0VDC to 6.9VDC  or    7.0VDC  to 8.9VDC or
    9.1VDC to 11.9VDC or  12.0VDC to   15.0VDC or 15.1VDC to 18.0VDC or 18.1VDC to 24.0VDC;
    www=001-400, represent for the rated output current from 0.01A to   4.0A;
    z=U,G,B,K,C,J,A,Q，R,Z,E, N   or W, stands for different national plug;
        U means USA plug,G means European   plug, B means Britain plug, K means Korea plug,
        C means Chinese plug,J means   Japanese plug, A means Australia plug,Q means India plug,
        R means Argentina plug,Z means   Brazil plug,E means Russia plug,
        N means South Africa plug,  W means Taiwan plug.

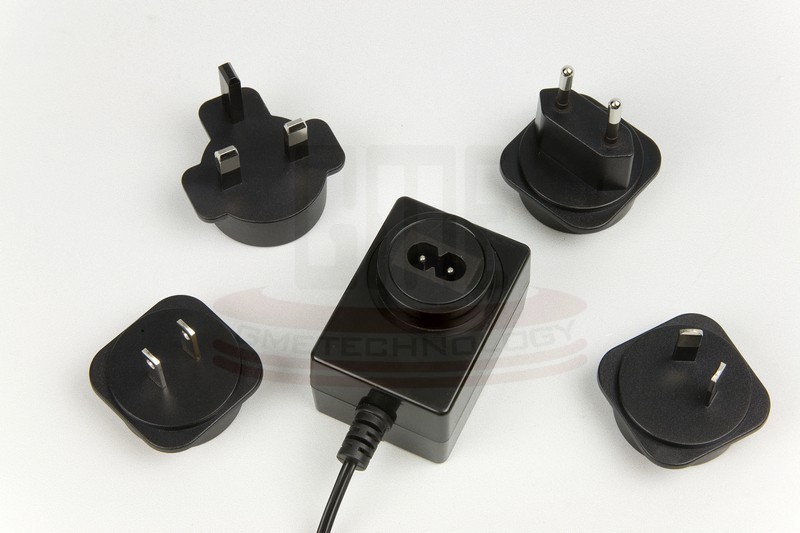

    XR= Represent the various interchangeable plug type
    DS2= Represent the Desk-top type

Working Environment   /  工作环境
ITEM   / 名称 MIN   / 最小值 MAX   /最大值
OPERATING   TEMPERATURE
    运行温度 		0℃ 45℃
STORAGE   TEMPERATURE
    储存温度 		-20℃ 85℃
OPERATING   HUMIDITY
    运行湿度 		5%RH 90%RH
STORAGE   HUMIDITY
    储存湿度 		5%RH 90%RH
Specifications   /  技术参数
ITEM  / 名称 MIN   / 最小值 MAX   /最大值
NORMAL   AC INPUT VOLTAGE
    常规AC输入电压 		100Vac 240Vac
AC   INPUT VOLTAGE RANGE
    AC输入电压范围  		90Vac 264Vac
AC   INPUT FREQUENCY
    AC输入频率  		47Hz  63Hz
AC   INPUT CURRENT
    AC输入电流
800mA
AVERAGE   EFFICIENCY
    效率 		VI
SAFETY   STANDARD:
    安全标准： 		IEC/UL/EN/62368/(GB4943/GB8898)
CERTIFICATE:
    认证： 		ETL/UL,FCC,GS,CE/EMC,UKCA,PSE,RCM,
    CCC,BIS,KC,NOM,BSMI
Size /  尺寸
ITEM  / 名称 L(长）*W(宽)*H(高)MM
GME24A-yyywwwFUR
    US/JP/CN Wall-mount/ 美规/日规/中规墙插式 		88(L)X45.5(W)X31.5(H)mm
GME24A-yyywwwFGR
    EU Wall-mount/欧规墙插式 		88(L)X45.5(W)X31.5(H)mm
GME24A-yyywwwFBR
    UK Wall-mount/英规墙插式 		88(L)X45.5(W)X38.8(H)mm
GME24A-yyywwwFAR
    SAA Wall-mount/澳规墙插式 		88(L)X45.5(W)X31.5(H)mm
GME24A-yyywwwFDS2                                                                    Desktop/桌面式 96.8(L)X44.8(W)X29.3(H)mm

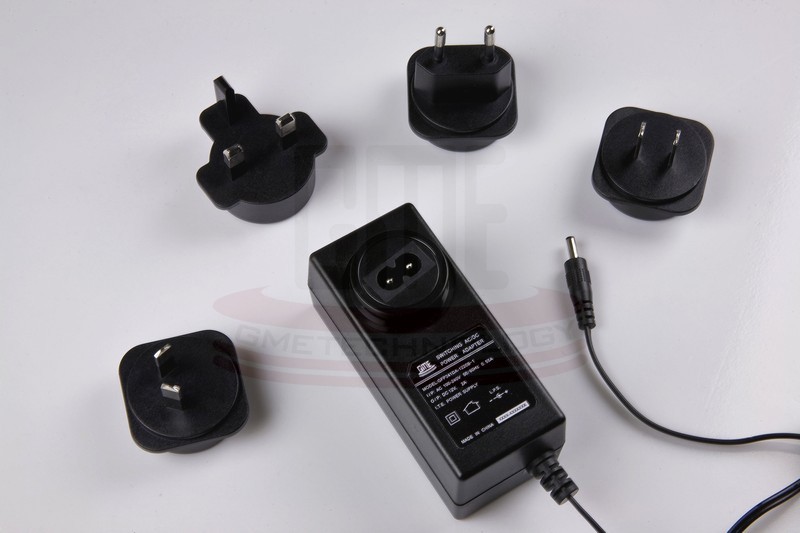

GME24A-yyywwwFXR                                                                            Interchangeable/可互换 88(L)X45.5(W)X38(H)mm



24W   (24G Series) 产品描述Product   Description
Model No.
    型号 		Typical output
    典型的输出
    		Output V
    输出电压 		Output A
    输出电流
GME24G-xxxyyyFzR
    GME24G-xxxyyyFXR
    GME24G-xxxyyyFDR 		9V,2.5A
    12V,2A                                         15V,1.5A                                       24V,1A 		9-15V
    18-24V  		0.01-2A
    0.01-1.33A
GME24G-xxxyyyFzR,FXR,FDR.     (yyy, www and z 是变量)
    yyy=  090-150或180-240，表示额定输出电压从 9.0VDC ~ 15.0VDC或18.0VDC ~24.0VDC;
    www=001-200，表示额定输出电流从0.01A到2.0A;
    z= U,G,B,K,C,J,A,Q,R, z,E, N或W，代表不同国家的插头;
         U表示美国插头，g表示欧洲插头，B表示英国插头，K表示韩国插头，C表示中国插头，
         J表示日本插头，A表示澳大利亚插头，Q表示印度插头，R表示阿根廷插头，z表示巴西插头，
         E表示俄罗斯插头，N表示南非插头，W表示台湾插头。
    XR  = 表示各种可互换插头类型
    DR= 表示台式型外壳
GME24G-xxxyyyFzR,FXR,FDR.     ( yyy, www and z are variables )
    yyy=090-150 or 180-240 , represent for the rated output voltage from
           9.0VDC to 15.0VDC or 18.0VDC   to 240VDC ;
    www=001-200, represent for the rated output current from 0.01A to 2A;
    z=U,G,B,K,C,J,A,Q，R,Z,E, N   or W, stands for different national plug;
        U means USA plug,G means European   plug, B means Britain plug, K means Korea plug,
        C means Chinese plug,J means   Japanese plug, A means Australia plug,Q means India plug,
        R means Argentina plug,Z means   Brazil plug,E means Russia plug,
        N means South Africa plug,  W means Taiwan plug.
    XR=   Represent the various   interchangeable plug type
    DR= Represent the Desk-top type

Working Environment   /  工作环境
ITEM   / 名称 MIN   / 最小值 MAX   /最大值
OPERATING   TEMPERATURE
    运行温度 		0℃ 45℃
STORAGE   TEMPERATURE
    储存温度 		-20℃ 85℃
OPERATING   HUMIDITY
    运行湿度 		5%RH 90%RH
STORAGE   HUMIDITY
    储存湿度 		5%RH 90%RH
Specifications   /  技术参数
ITEM  / 名称 MIN   / 最小值 MAX   /最大值
NORMAL   AC INPUT VOLTAGE
    常规AC输入电压 		100Vac 240Vac
AC   INPUT VOLTAGE RANGE
    AC输入电压范围  		90Vac 264Vac
AC   INPUT FREQUENCY
    AC输入频率  		47Hz  63Hz
AC   INPUT CURRENT
    AC输入电流
800mA
AVERAGE   EFFICIENCY
    效率 		VI
SAFETY   STANDARD:
    安全标准： 		IEC/UL/EN/62368/(GB4943/GB8898)
CERTIFICATE:
    认证： 		ETL/UL,FCC,GS,CE/EMC,UKCA,PSE,RCM,
    CCC,BIS,KC,NOM,BSMI
Size /  尺寸
ITEM  / 名称 L(长）*W(宽)*H(高)MM
GME24G-yyywwwFUR
    US/JP/CN Wall-mount/ 美规/日规/中规墙插式 		88(L)X45.5(W)X31.5(H)mm
GME24G-yyywwwFGR
    EU Wall-mount/欧规墙插式 		88(L)X45.5(W)X33(H)mm
GME24G-yyywwwFBR
    UK Wall-mount/英规墙插式 		88(L)X45.5(W)X38.8(H)mm
GME24G-yyywwwFAR
    SAA Wall-mount/澳规墙插式 		88(L)X56(W)X40(H)mm
GME24G-xxxyyyFDR                                                                         Desktop/桌面式 90(L)X42.5(W)X32(H)mm
GME24G-xxxyyyFXR                                                                                      Interchangeable/可互换 88(L)X45.5(W)X38(H)mm
