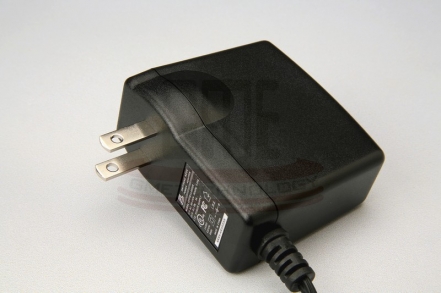

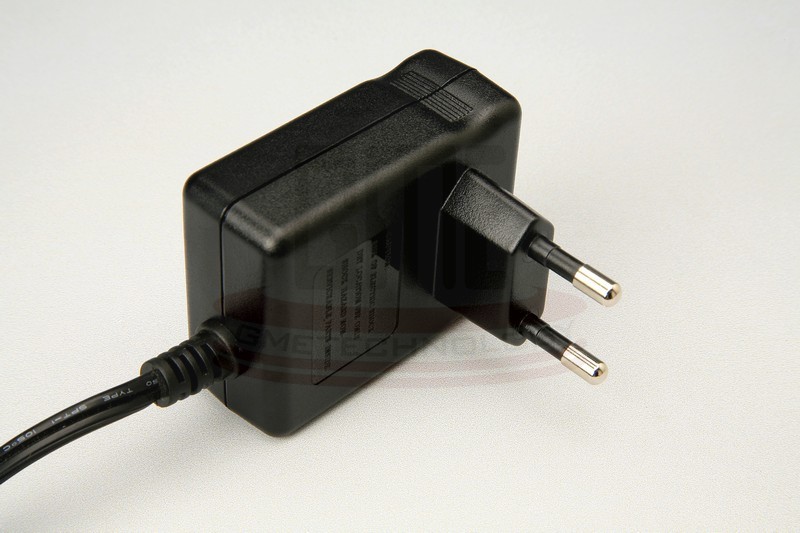

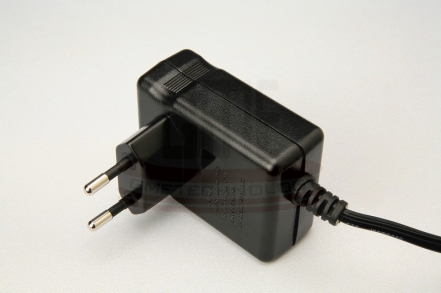

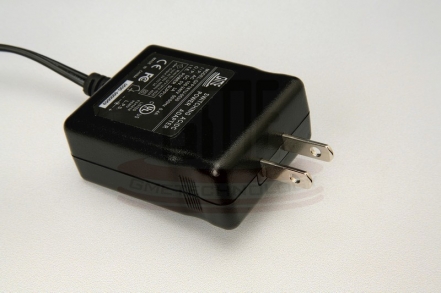

Power supply adapter 18W_EU
GFP181U
Design AC Power supply, charger, DC power supply and switching power supply, complete procedure and quality assurance system from customer requirment,design, development,mass production and customer service.
Contact
Products Details

Product Description



Model No.Output VOutput A
GFP181U-090200B-29.0V2.0A



MEET ROHS CEC
Features:
Universal Input 100-240 VAC
Modified and Custom Design Available

Output with Low Ripple Noise
1 Year Warranty



Electrical
Dielectric:  3000VAC
Burn-In Test:  100% Full Load
Leakage Current:  0.25mA @ 2 pin

Efficiency:  Meet CEC
MTBF :50000Hours



AC Input
VOLTAGE RANGE:  90-264VAC
INPUT FREQUENCY: 47-63HZ
INPUT CURRENT: 350mA max
INRUSH CURRENT:  30A max
EFFICIENCY:  70%min



DC Output
VOLTAGE RANGE:  5V-24V
CURRENT RANGE:  0.01A-2A
RIPPLE:  +1% Voltage Max



Safety Approval
UL/CUL/FCC/GS(LVD)/CE/EMC/PSE
3C/MEPS/EUP
CEC/Energy Star
